Actions in irAuthor Web

Actions are the tasks the engine executes if the conditions of a rule evaluate to TRUE. Rules can also contain only actions if required.

The following sections cover the various actions available in irAuthor Web.

Core actions​

Set Value​

The Set Value action assigns a value to a field or variable.

Name
Specifies the name of the action.

Enabled
Controls whether the action executes.

Description
Editable description of the action.

Target
Specifies the field or variable to set.

Value
Specifies the expression used to calculate the value.

Declare Variable​

Defines a variable scoped to the rule set.

Name
Specifies the variable name.

Enabled
Controls whether the action executes.

Description
Editable description of the action.

Data type
Specifies the type of the variable.

Entity
Required when data type is Entity.

Default value
Optional initial value.

Fire Notification​

Creates a runtime notification.

Name
Specifies the notification name.

Enabled
Controls whether the action executes.

Description
Editable description.

Message
Notification message.

Notification Level
Specifies severity.

Associated field
Optional linked field.

Allow Multiple Notifications
Controls whether multiple notifications can be generated.

Rule execution actions​

Execute rule set​

You can configure a rule to execute an independent rule set.

When adding this action, the rule includes editable fields such as:

  • Execute rule set
  • + Enter rule set

If the selected rule set defines values, you can assign those when configuring the action.

These values are used when the rule set is executed.

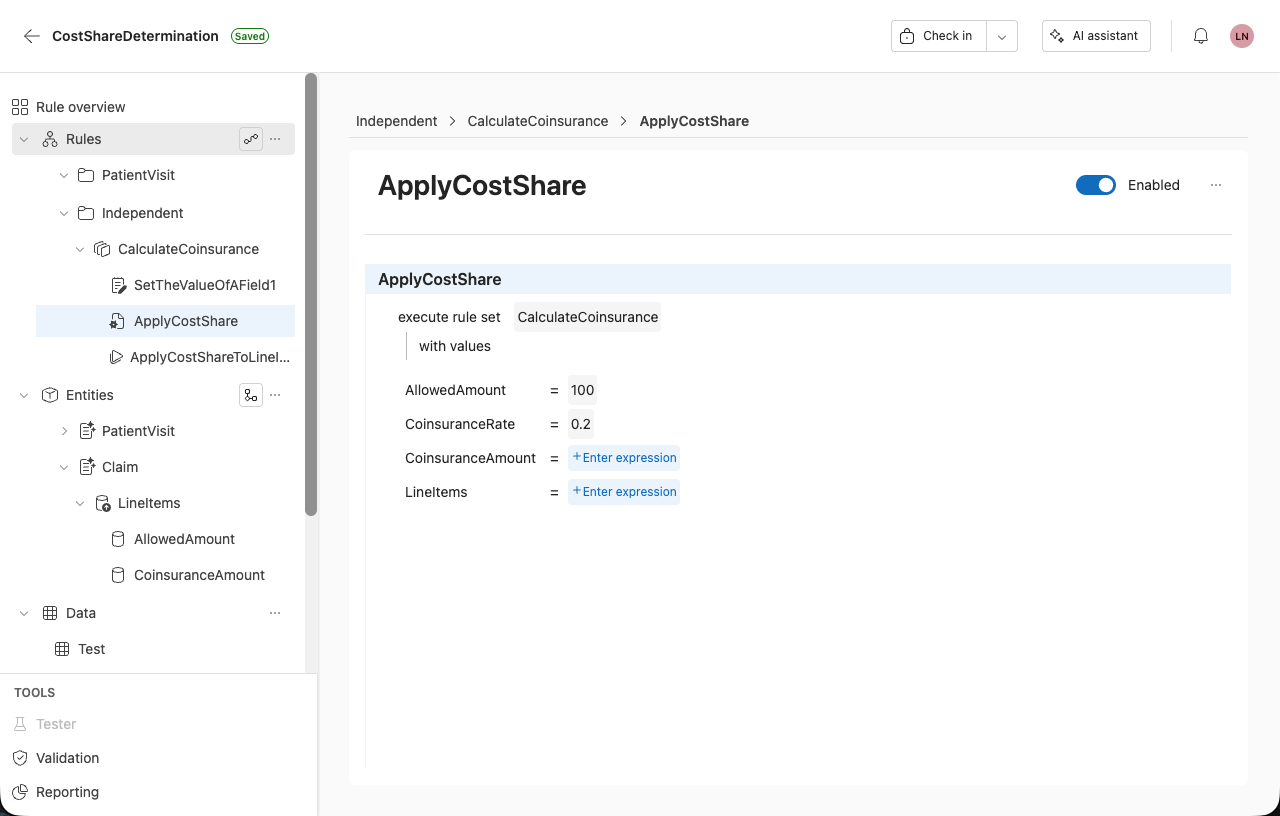

Screenshot shows an example of an execute rule set template

Execute member ruleset​

You can execute a rule set across a collection.

When using this action, the rule template includes the fields:

  • Execute rule set
  • + Enter rule set
  • In collection
  • + Collection

You can also enable or disable the action using the toggle.

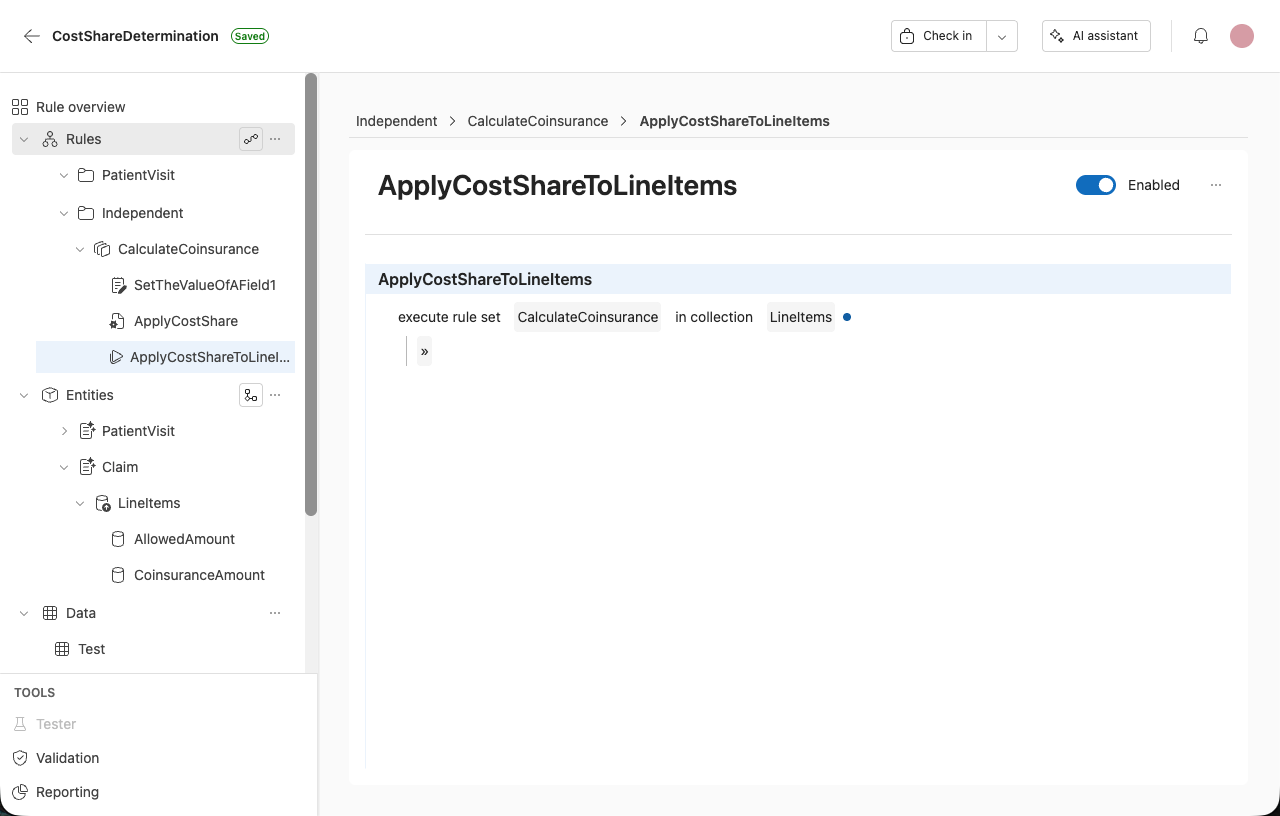

Screenshot shows an example of an execute member rule set template

Execute decision​

Executes a decision defined in the rule application.

Name
Specifies the name of the action.

Decision
Specifies the decision to execute.

Inputs
Optional input values for the decision.

Collection actions​

Add Collection Member​

Adds a new member to a collection.

Name
Specifies the name of the action.

Enabled
Controls whether the action executes.

Description
Editable description.

Collection Name
Target collection.

Initial Field Values
Optional initial values.

Copy Mode
By reference, shallow, or deep copy.

Remove Collection Member​

Removes a member from a collection.

Name
Specifies the name of the action.

Enabled
Controls whether the action executes.

Description
Editable description.

Collection
Target collection.

Remove index
Index or expression.

Clear Collection​

Removes all members from a collection.

Name
Specifies the name of the action.

Collection
Target collection.

Sort Collection​

Sorts a collection.

Name
Specifies the name of the action.

Enabled
Controls whether the action executes.

Description
Editable description.

Collection
Collection to sort.

Sort fields
Fields and direction.

Copy collection​

Copies members between collections.

Name
Specifies the name of the action.

From
Source collection.

To
Target collection.

Copy mode
By reference, shallow, deep.

Filter
Optional filter.

Entity actions​

Copy entity​

Copies one entity to another.

Name
Specifies the name of the action.

From
Source entity.

To
Target entity.

Copy mode
By reference, shallow, deep.

Data mapping actions​

Map JSON document to fields​

Maps JSON data into fields.

Name
Specifies the name of the action.

Source
JSON expression.

Target
Target field or entity.

Map XML to fields​

Maps XML data into fields.

Name
Specifies the name of the action.

Source
XML expression.

Target
Target field or entity.

Validation and state actions​

Mark field as invalid​

Marks a field as invalid.

Name
Specifies the name of the action.

Field
Target field.

Message
Validation message.

Refresh fields​

Re-evaluates one or more fields.

Name
Specifies the name of the action.

Fields
Fields to refresh.

Execution control actions​

Halt execution​

Stops all rule execution.

Name
Specifies the name of the action.

Message
Reason for stopping execution.

Halt rule set​

Stops the current rule set.

Name
Specifies the name of the action.

Message
Reason for stopping execution.

Rule activation actions​

Activate rulesets by name​

Activates rule sets globally.

Name
Specifies the name of the action.

Rule set
Rule set to activate.

Deactivate rulesets by name​

Deactivates rule sets globally.

Name
Specifies the name of the action.

Rule set
Rule set to deactivate.

Activate ruleset instance​

Activates a rule set for the current entity instance.

Name
Specifies the name of the action.

Rule set
Rule set to activate.

Deactivate ruleset instance​

Deactivates a rule set for the current entity instance.

Name
Specifies the name of the action.

Rule set
Rule set to deactivate.
